Factory building plan guide for manufacturing layout, approvals, and future growth

What a factory building plan should decide first

A factory building plan is more than an architectural drawing. For a manufacturing project, it should explain how raw materials enter the site, how production steps connect, where people and vehicles move, what utilities the process needs, and which approvals could affect the schedule. A good plan also flags issues before they become costly field changes: insufficient slab capacity, tight turning radii, undersized electrical service, weak fire separation, blocked maintenance access, or no practical space for future lines.

The best starting point is not the building shape. It is the production logic. Once output targets, process sequence, equipment dimensions, safety controls, and site constraints are clear, the building can be planned around real operating needs rather than assumptions.

Core inputs to collect before design

Before the design team fixes the building footprint, the owner or project team should prepare a short but detailed requirements package. It does not need to be a polished design document at the beginning, but it should be specific enough for architects, engineers, contractors, and equipment suppliers to work from the same assumptions.

Production process and routing

Start with a process map from receiving to shipping. List each production step, the equipment used, the material state at that step, and the expected volume. In a machinery manufacturing or fabrication environment, this may include cutting, machining, welding, surface treatment, assembly, inspection, packing, and dispatch. Each step should show the normal route, any rework route, and any quarantine or quality-hold area.

The plan should also separate fixed assets from movable equipment. Heavy machines, pits, ovens, paint booths, cranes, tanks, and large compressors usually drive structural and utility decisions. Benches, racks, inspection tables, and mobile carts can often be adjusted later, but they still need clear circulation space.

Utilities and building services

Production utilities should be estimated early, even if exact equipment models are not final. Electrical demand, compressed air, process water, natural gas, ventilation, dust collection, drainage, heating, cooling, data cabling, and fire protection all influence the building layout. A factory can look efficient on a floor plan and still perform poorly if service runs are too long, maintenance valves are hard to reach, or utility rooms are pushed into leftover space.

People, logistics, and maintenance

People flow is not secondary. Operators, supervisors, maintenance staff, visitors, forklift drivers, truck drivers, and emergency responders all use the facility differently. A complete factory building plan should show entrances, locker rooms, offices, welfare areas, pedestrian routes, vehicle routes, inspection points, maintenance access, and emergency exits. These routes should be planned before construction documents are finished, not improvised after machines are installed.

Input	Planning question	Why it matters
Production sequence	Which steps must be adjacent?	Reduces travel distance and work-in-process congestion.
Equipment list	What loads, clearances, and services are required?	Controls slab, structure, utilities, and access planning.
Material flow	Where do raw materials, WIP, scrap, and finished goods move?	Prevents cross-traffic and hidden storage bottlenecks.
Staffing plan	How many people use each zone per shift?	Supports egress, welfare, parking, and circulation planning.
Expansion target	Which areas may grow in three to ten years?	Protects future capacity without rebuilding core systems.

Site, code, and permitting checks

Site selection and regulatory checks should run in parallel with layout planning. A production layout may look ideal until zoning, truck access, stormwater management, fire department access, environmental controls, or utility availability changes the feasible footprint.

In the United States, many jurisdictions base local building rules on versions of the International Building Code, but adoption and amendments vary by state and municipality. The IBC classifies many manufacturing uses under factory and industrial occupancies, while higher-hazard processes or significant storage uses may fall into other categories. The authority having jurisdiction makes the final determination, so the plan should be reviewed locally before major design decisions are locked.

Stormwater and land disturbance can also affect factory projects. The U.S. Environmental Protection Agency states that construction sites disturbing one or more acres, and smaller sites that are part of a larger common plan of development, may require construction stormwater permit coverage. State or local programs may add their own requirements. For factory projects, this can influence grading, detention, erosion control, phasing, and construction sequencing.

A practical permitting review should include zoning use, setbacks, height limits, fire access roads, parking, loading docks, utility connections, wastewater discharge, air emissions if applicable, stormwater, noise, hazardous materials, and signage. The goal is not to turn the owner into a code expert. It is to identify approval risks early enough for the design to adapt without major rework.

Turn process flow into a workable layout

The layout is where a factory building plan becomes operational. The plan should reduce unnecessary travel, protect people from vehicle and machine hazards, and leave enough space for materials to pause without blocking production. A compact plan is not always an efficient plan. If aisles, staging zones, maintenance areas, and inspection points are undersized, the factory may lose time every day after opening.

Choose the right flow pattern

A straight-line flow works well when materials move through a stable sequence with limited variation. A cellular layout can support families of parts that share similar processes. A functional layout groups similar equipment, such as machining centers or welding stations, and may suit high-mix production. Many factories use a hybrid approach: receiving and storage at one end, shared process zones in the center, assembly or finishing near shipping, and quality control positioned where decisions are made.

Separate conflicting movements

Forklifts, pedestrians, trucks, cranes, and automated equipment should not be forced into the same narrow paths. Where separation is possible, the plan should use dedicated walkways, marked crossings, barriers, mirrors, speed control, and clear sight lines. Where full separation is not possible, the risk should be reduced through operating rules, training, signage, and engineering controls.

Plan docks, storage, and buffers realistically

Receiving and shipping areas often look oversized during design and undersized after production starts. The plan should account for peak delivery times, truck types, dock positions, trailer staging, packaging materials, rejected goods, scrap, and finished product accumulation. If the factory will handle long steel, heavy components, pallets, or crated machinery, the building must allow safe turning, lifting, and temporary storage without blocking exits or aisles.

Plan structure and MEP from production requirements

Structural and MEP decisions should follow production requirements rather than generic industrial assumptions. A light assembly plant, a machining facility, a welding shop, and a food processing facility can all be called factories, but they have very different loads, ventilation needs, drainage needs, fire risks, and maintenance requirements.

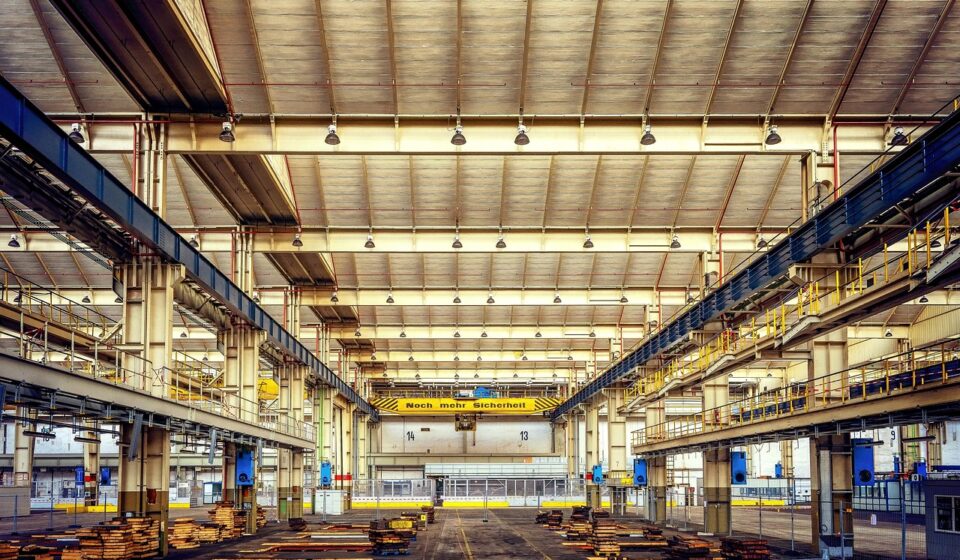

The structural plan should address floor loading, point loads, vibration sensitivity, column spacing, roof loads, mezzanines, pits, trenches, dock levels, crane beams, and equipment foundations. Clear height should be checked against racking, lifting equipment, ductwork, sprinklers, lighting, and future automation. A layout that fits in plan view may still fail if overhead space is consumed by services.

MEP planning should include electrical service size, transformer location, panel access, cable routes, emergency power needs, lighting levels, compressed air loops, ventilation, exhaust, heating and cooling, process piping, water treatment, sanitary facilities, and drainage. Long utility runs can increase cost and reduce reliability, but overly centralized systems may make future expansion difficult. A balanced factory building plan leaves accessible corridors or service zones for maintenance and future connections. See also: buying guides.

For machinery manufacturing, compressed air quality, welding fume extraction, dust collection, thermal comfort, crane coverage, and inspection lighting may be especially important. These should be treated as planning inputs, not late-stage accessories.

Safety, fire protection, and environmental controls

Safety planning should be built into the facility, not added after construction. OSHA guidance on safety and health programs emphasizes proactive hazard identification, worker participation, and control measures that address hazards before injuries occur. In building planning terms, this means asking operators, maintenance staff, and supervisors where hazards are likely to appear: blind corners, lift points, hot work areas, pinch points, stored energy, chemical handling, confined spaces, roof access, and truck interactions.

The hierarchy of controls is useful during layout review. Eliminating a hazard or isolating people from it is usually stronger than relying only on procedures or personal protective equipment. Examples include locating noisy equipment away from offices, separating pedestrian and forklift routes, designing fixed platforms instead of repeated ladder use, enclosing dust or fume sources, and providing enough space for lockout and maintenance.

Fire protection should be reviewed by qualified professionals and the local fire authority. NFPA 13 is widely used for sprinkler system design, while electrical installations are commonly planned with reference to the National Electrical Code where adopted. These standards are technical and application-specific, so the factory plan should not assume that a generic warehouse fire strategy will suit a manufacturing process. Combustible dust, flammable liquids, spray finishing, battery charging, hot work, high-piled storage, and hazardous materials can all change the design approach.

Environmental controls also deserve early attention. Noise, wastewater, fumes, dust, stormwater, solid waste, chemical storage, and spill containment may influence the building layout and permit path. Planning these items early can reduce retrofit costs and help avoid conflicts between production efficiency and compliance.

Build in flexibility without losing discipline

A factory should be planned for current production, but it should not trap the business in today’s layout. The challenge is to create flexibility where it has real value and avoid paying for unused capacity everywhere.

Useful flexibility may include knock-out wall panels for expansion, protected utility corridors, extra electrical capacity in strategic areas, modular compressed air loops, reserved space for a future line, removable partitions, wider main aisles, and a structural grid that supports alternative equipment arrangements. In contrast, overbuilding every slab, oversizing every utility, or leaving large undefined empty areas can waste capital and make operations less disciplined.

Phasing is often the most practical answer. The plan can show a phase-one facility that meets known demand, a phase-two expansion zone, and the utility and site provisions needed to avoid demolition later. This is especially important on constrained sites where future docks, fire lanes, stormwater facilities, or loading courts may be difficult to add.

A practical factory building plan checklist

The following checklist can help project teams review a plan before moving into detailed design or construction pricing:

• Confirm the production process map, expected output, shift pattern, and peak material volumes.
• List major equipment with dimensions, operating clearances, maintenance clearances, weight, vibration sensitivity, and utility demand.
• Map raw material, work-in-process, finished goods, scrap, rework, and waste routes.
• Separate pedestrian, forklift, truck, crane, and visitor movements where possible.
• Check receiving, staging, inspection, packing, and shipping areas against peak conditions.
• Review zoning, building classification, fire access, environmental permits, stormwater, and utility availability with local professionals.
• Confirm slab, clear height, column grid, dock heights, roof loads, and crane or lifting requirements.
• Plan electrical, compressed air, ventilation, exhaust, water, drainage, and data routes with maintenance access.
• Review safety controls using hazard identification and the hierarchy of controls.
• Reserve realistic space for future production lines, storage growth, and service expansion.

For broader planning topics related to industrial facilities, visit the factory planning section.

Frequently asked questions

What should be included in a factory building plan?

A complete plan should include the site strategy, production layout, material flow, people flow, equipment requirements, structural concept, utilities, safety controls, fire protection approach, environmental considerations, permitting path, logistics areas, and future expansion strategy. The level of detail should increase as the project moves from feasibility to detailed design.

Is a factory building plan different from a warehouse plan?

Yes. A warehouse plan is often driven by storage density, inventory movement, docks, and picking operations. A factory building plan must also account for production sequence, equipment foundations, process utilities, worker safety, quality control, maintenance access, emissions, waste streams, and process-specific fire or environmental risks.

Who should review the plan before construction?

The review team should normally include the owner’s operations staff, maintenance staff, safety representative, architect, structural engineer, MEP engineers, fire protection specialist, civil engineer, equipment suppliers, contractor, and local code or permitting professionals. Worker input is valuable because operators often understand daily hazards and workflow problems that drawings alone may not reveal.

When should future expansion be planned?

Future expansion should be considered during site selection and concept design. Waiting until the first building is complete can leave no room for additional docks, utility upgrades, fire lanes, stormwater facilities, or production lines. Expansion planning does not require building everything immediately, but it should protect the options that would be expensive or impossible to recover later.
